Creating Circular Patterns

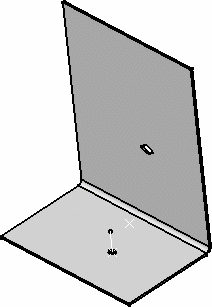

The Sheet Metal part looks like this:

1. Select the circular cutout you want to duplicate.

2. Click Circular Pattern .

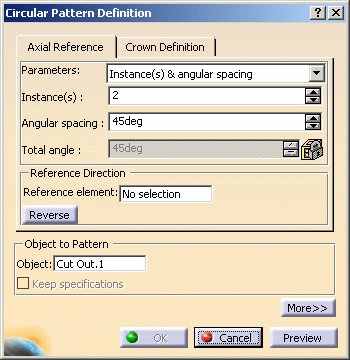

   The Circular Pattern Definition dialog box is displayed.

3. Define the Axial Reference by choosing the Parameters type, and reference direction.

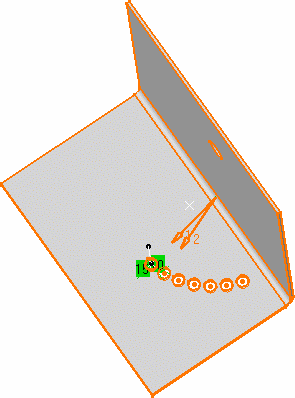

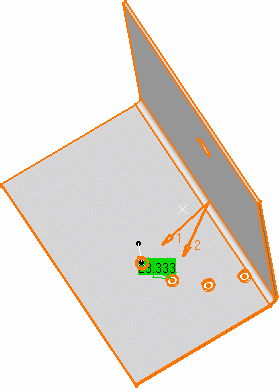

   Instance(s) & total angle: the number of patterns as specified in the instances field are created, in the specified direction, and evenly spread out over the total angle. Instance(s) & angular spacing: the number of patterns as specified in the instances field are created in the specified direction, each separated from the previous/next one of the angular angle value. Angular spacing & total angle: as many patterns as possible are created over the total angle, each separated from the previous/next one of the angular angle value. Complete crown: the number of patterns as specified in the instances field are created over the complete circle (360deg).
   	If you set Instance(s) & total angle or Angular spacing & total angle parameters, note that you cannot define the length by using formulas.

4. Click the Reference element and select the element defining the rotation axis.

   Here select the face on which lies the circular cutout.
   	To define a direction, you can select an edge or a planar face. Should you select the face of a wall, the rotation axis would be normal to that face. Click the Reverse button to inverse the rotation direction.

Now you are going to add a crown to this pattern.

5.  Click the Crown Definition tab, and choose which parameters you wish to define the crown.

   This figure may help you define these parameters:
   Circle(s) and crown thickness: you define the number of circles and they are spaced out evenly over the specified crown thickness Circle(s) and circle spacing: you define the number of circles and the distance between each circle, the crown thickness being computed automatically Circle(s) spacing and crown thickness: you define the distance between each circle and the crown thickness, and the number of circles is automatically computed.

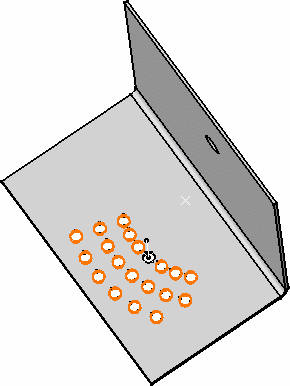

   For example, using the values described above for the Angular spacing & total angle option, you could define the crown as:

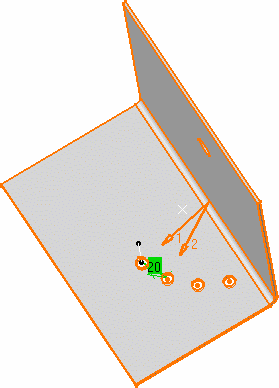

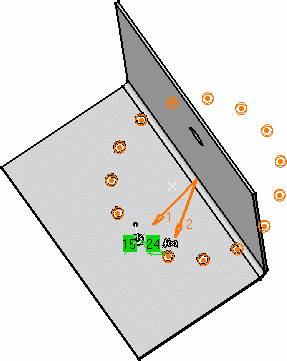

   	Note that one of the pattern is created beyond the wall.  You can delete instances of your choice when creating or editing a pattern. To do so, just select the points materializing instances in the pattern preview. The instance is deleted, but the point remains, as you may wish to click it again to add the instance to the pattern definition again.

6. Click the More>> button to display further options:

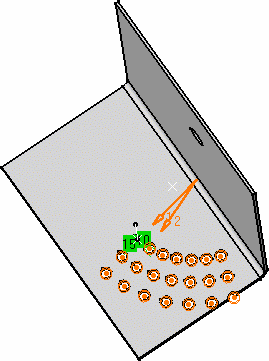

   Using these options, you can change the position of the selected cutout within the crown. For example, if you set the Row in angular direction parameter to 4, this is what you obtain: the initially selected cutout is the fourth instance, based on the rotation direction, of the pattern. Typically, in this case, you might want to edit the pattern and click again the instance that you removed above, to get a full pattern.
   	In case you use the circular cutout as a reference element, it means the axial reference of the pattern will be the same as the rotation axis of the circular cutout. As a result, when the cutout is duplicated, the first crown instances will be superimposed on one another. To avoid this, uncheck Radial alignment of instances, so that the instances are properly positioned around the cutout.
   	The Simplified representation option lets you lighten the pattern geometry, when more than 10 instances are generated in one direction. What you need to do is just check the option, and click Preview. The system automatically simplifies the geometry: You can also specify the instances you do not want to see by double-clicking them . These instances are then represented in dashed lines during the pattern definition and then are no longer visible after validating the pattern creation. The specifications remain unchanged, whatever the number of instances you view. This option is particularly useful for patterns including a large number of instances. When checking the Radial alignment of instances, all instances have the same orientation as the original feature. When unchecked, all instances are normal to the lines tangent to the circle.

7. Click OK to create the pattern.

   (Reference information specific to the Generative Sheetmetal Design workbench) When you duplicate a pattern of flange, the edge of the flange spine and its instances have to be tangent to the wall edge: you cannot choose a direction of patterning not parallel to the flange spine. All instances of the flange pattern must lie on the same face as the flange pattern.
