This task explains how to customize your Measure
Between calculation and result display. The customization consists in:
- Selecting the appropriate distance specification among minimum
distance, maximum distance and maximum distance from 1 to 2
- Selecting the display options for the resulting measurements.
|
 |
Insert the following sample model files: ATOMIZER.model, BODY1.model, BODY2.model, LOCK.model, NOZZLE1.model,
NOZZLE2.model, REGULATION_COMMAND.model, REGULATOR.model, TRIGGER.model and
VALVE.model. They are to be found in the online documentation file tree in
the common functionalities sample folder cfysm/samples . |
 |
-
Click Measure Between
.
In DMU, you can also select Analyze > Measure Between from the
menu bar.
-

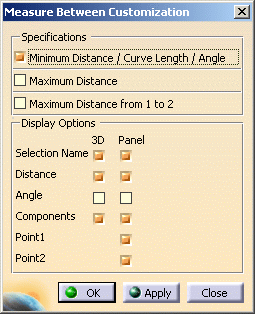

Click Customize... and
select the appropriate maximum distance check box in the Measure Between
Customization dialog box:
 |
Customizing lets you choose what distance you want to
measure:
-
Minimum distance (and angle if applicable) this is the
default option.
-
Maximum distance
-
Maximum distance from 1 to 2.
-
You can also choose to display components (either in the
geometry area or/and in the dialog box) and the
coordinates of the two points (point 1 and point 2) between which the
distance is measured either
Customizing now lets you choose to display in the
geometry area the:

Options
|
Available in the geometry area
|
Available in the Measure Between dialog box
|
Measure types
|
Minimum Distance/ curve length / Angle
|
 |
 |
Maximum Distance |
 |
 |
Maximum Distance from 1 to 2 |
 |
 |
Display Options
|
Angle |
 |
 |
Point 1 |
N/A |
 |
Point 2 |
N/A |
 |
Selection name |
 |
 |
 |
Note: The measure types are
mutually exclusive. Each time you change option, you must make your
measure again. |
|
-
Make your measure:
-
Click OK when done.
|
|
