Using the Network Assistant

This task shows you how to use the Network Assistant command. This command highlights linked bundle segments and devices and further displays connections between them. It also detects and repairs broken connections.
  This command is available in the Electrical Harness Flattening and Electrical Wire Routing workbenches.
The scenario depicted below is typical for the Electrical Harness Flattening workbench.
Open a document containing some broken links in the Electrical Harness Flattening workbench.

  1. Click Network Assistant in the Electrical Link toolbar.
    For the Electrical Wire Routing workbench, select Tools > Network Assistant.

    The network is analyzed (checked) for faulty connections. When the problem is detected the check stops.

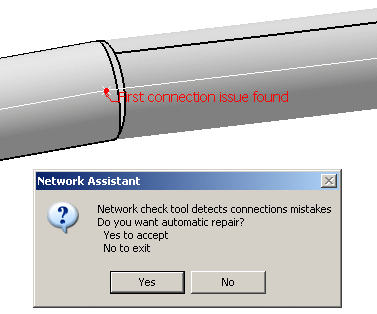

  2. Reframe on the faulty connection. The following message is displayed.

  1. Click Yes to repair the network. A message box informs you that the repair is done.
    Click No to cancel the command.

  2. Click OK.

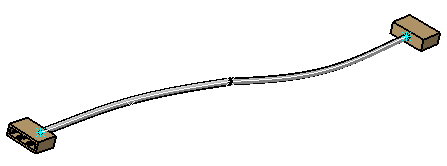

  3. Select a bundle segment. All connected bundle segments and devices are highlighted in the geometry area.

  4. Click in space or press escape (on you keyboard) to exit the command.
