Electrical User Functions

About the Electrical User Functions...

To be able to use these functions, you need to activate the ElectricalMeasure package.

To do so:

  1. Select Tools > Options... > General > Parameters and Measure and go to the Knowledge Environment tab.

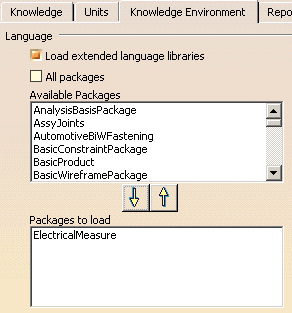

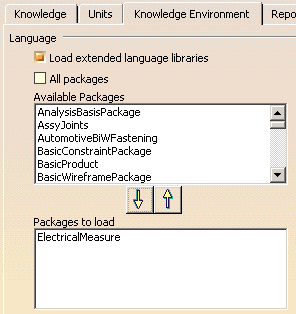

  2. Select ElectricalMeasure from the list of available packages and click the Down arrow to load this package:

  3. Click OK to validate. You will be prompted to restart the application.

Elec_DistanceCommon

Syntax

Elec_DistanceCommon(Wire1: Wire, Wire2: Wire):Length
Returns the common length of the two wires given as input arguments.
The type of Wire1 and Wire2 is ElecWire.

Example 1

The Elec_DistanceCommon user function can be used in Knowledge Expert to find all the couples of wires in the session that have a common length greater than a given value.

Example 2

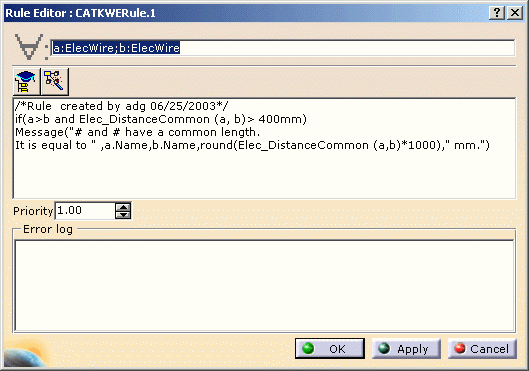

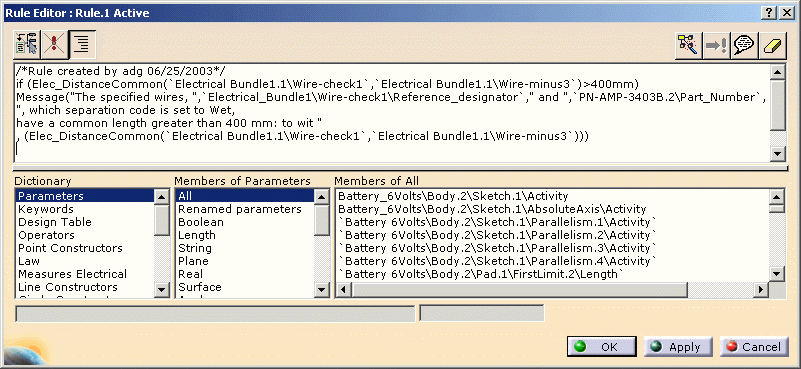

In Knowledge Advisor, it can be used to define a rule giving the common length of two specific wires sharing properties.

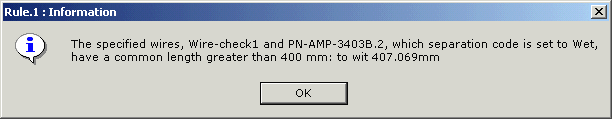

Applying the rule displays the following message if the condition is met:

Example 3

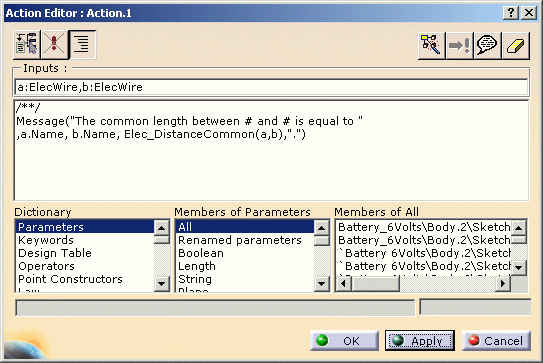

Still in Knowledge Advisor, to verify that two wires selected in the specification tree have a common length, the following action can be defined:

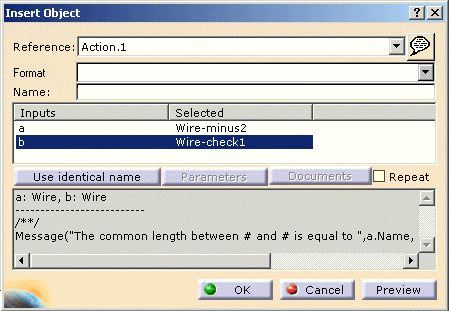

then select two wires in the specification tree and click OK to validate.

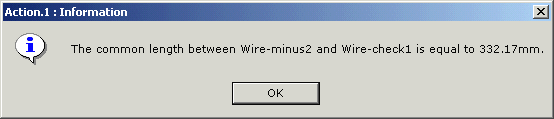

The following message displays:

DistanceWireProduct

Syntax

DistanceWireProduct(Wire1: Wire, Object: Product):Length
Returns the minimum length between a wire and a product in session. The product must contain at least one part.

Example 1

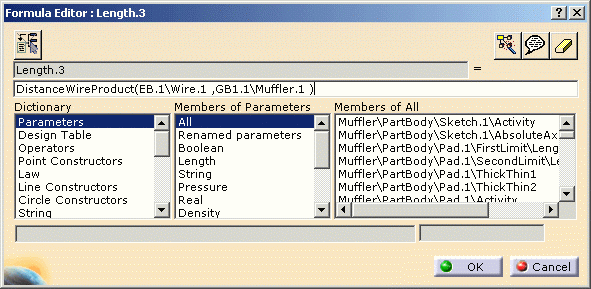

The DistanceWireProduct user function can be used with the f(x) command to display the distance between a wire and a component in the session.

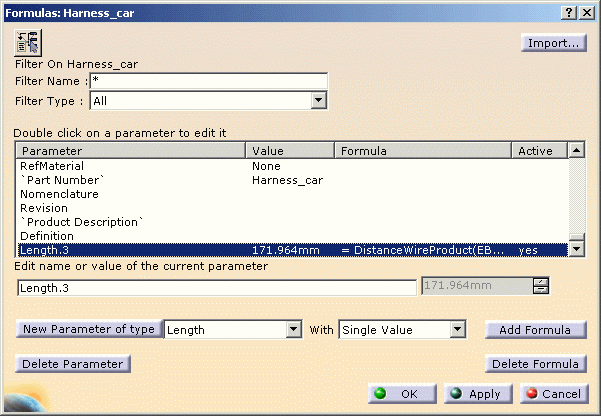

This formula returns the following value:

Example 2

The DistanceWireProduct user function can be used in Knowledge Expert to find all the wires in the session that have a minimum distance to defined components smaller than a critical value chosen by the user. The components can be defined as heat-resistant.
Properties have been added to the product:

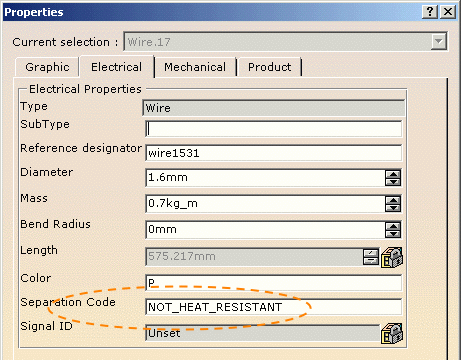

and to the wires:

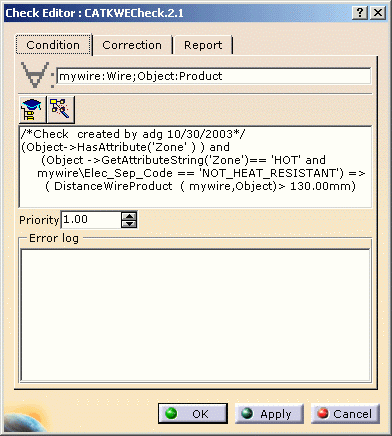

A check is defined as follows:

Updating the session displays green/red light on the check:

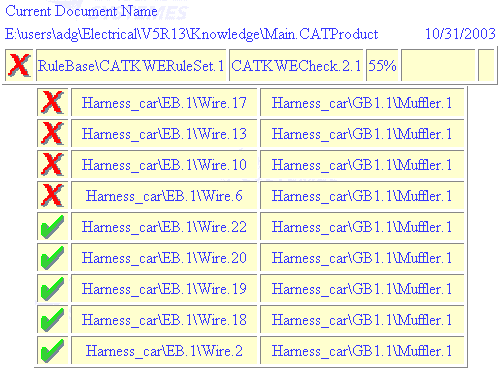

A report is generated showing the check result: some wires verify the condition, while others do not.

Example 3

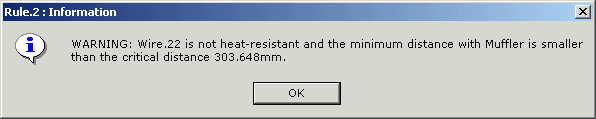

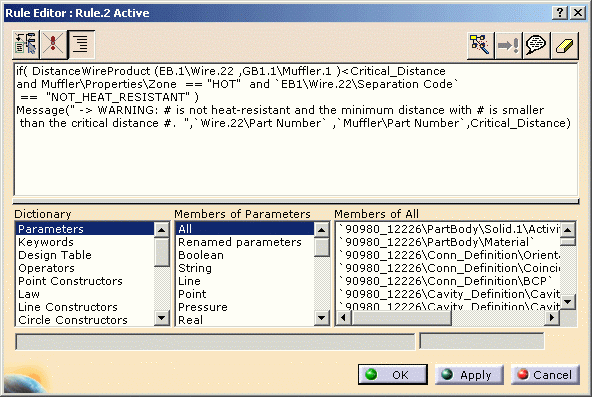

The DistanceWireProduct user function can be used in Knowledge Advisor to define a rule that displays a warning message if a minimum distance between a wire and an object is smaller than a critical value chosen by the user.

Running this rule displays the following message:

Example 4

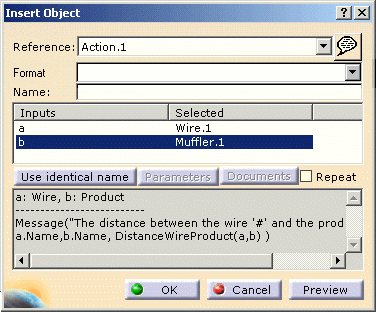

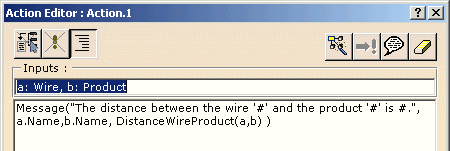

Still in Knowledge Advisor, an action can be defined using the DistanceWireProduct user function, to know the distance between a wire and an object selected in the specification tree:

Run the action using the Action.1 contextual menu:
select a wire and a product in the specification tree then validate.

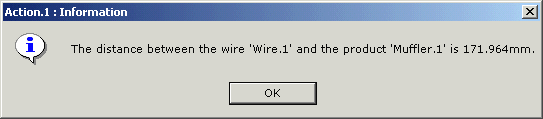

This message displays:

ListAllOuterLayerObjects

Syntax

ListAllOuterLayerObjects (ElecBundleSegmentExtremity:Feature,Offset:Real,ListOfAllCoveringProducts(Protections/Supports):out List):Boolean

Returns an ordered list of protective coverings and supports that cover the bundle segment at the point of interest.
The point of interest is defined by specifying from which end of the bundle segment and entering an offset in mm.

Example

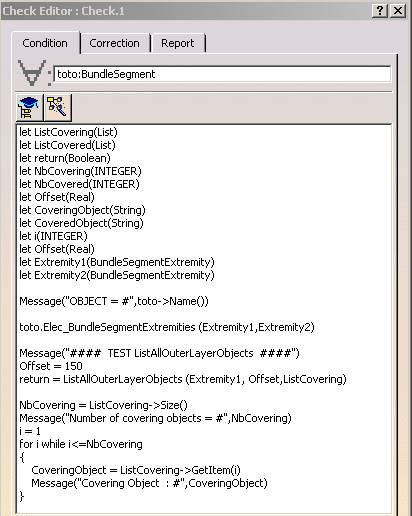

A check (in KWE advanced language) to determine the protective coverings and supports at 150 mm from end 1 (Extremity 1) of the bundle segment is written as follows:

ListDirectlyCoveredObjects

Syntax

ListDirectlyCoveredObjects((Protection/Support):Feature, ListOfCoveredProducts(BundleSegments/Protections/Supports): out List):Boolean

Returns the list of bundle segments, protective coverings and/or supports directly under the component (protective covering or support) you want to analyze.
If the component you want to analyze is not a protective covering or a support, the list returned will be empty.

Example

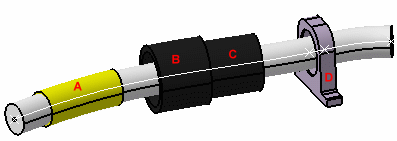

  • Tape A is placed directly over the bundle segment
  • Corrugated tubes B and C are linked to the bundle segment, and corrugated tube B covers tube C
  • Standard support D is linked to the bundle segment.

A check (in KWE advanced language) to determine the list of bundle segments, protective coverings and supports under corrugated tube C is written as follows:

Running this check returns:

  • The name of the component analyzed, in our case, corrugated tube C
  • The number of objects covered by corrugated tube C:
  • Followed by the name of this component: the bundle segment.

ListDirectlyOuterLayerObjects

Syntax

ListDirectlyOuterLayerObjects ((BundleSegment/Protection/Support):Feature, ListOfCoveringProducts(Protections/Supports): out List):Boolean

Returns the list of outer layers of protective coverings and/or supports directly over the component (bundle segment, protective covering or support) you want to analyze.
If the component you want to analyze is not a bundle segment, protective covering or a support, the list returned will be empty.

Example

  • Tape A is placed directly over the bundle segment
  • Corrugated tubes B and C are linked to the bundle segment, and corrugated tube B covers tube C
  • Standard support D is linked to the bundle segment

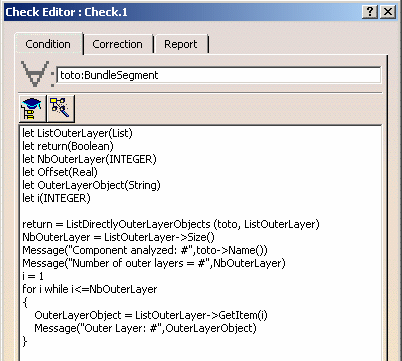

A check (in KWE advanced language) to determine the list of outer layers that directly cover the bundle segment in the example is written as follows:

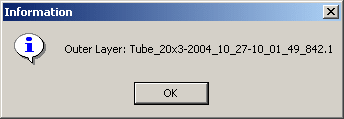

Running this check returns:

  • The name of the component analyzed, in our case, the bundle segment.
  • The number of outer layers over the bundle segment:
    Only 3 are found because corrugated tube B does not directly cover the bundle segment since it covers corrugated tube C.
  • Followed by the names of these components:

ListUsedSupports

Syntax

ListUsedSupports ((BundleSegment/BranchableBundleSegment): Feature, ListOfSupports(Supports): out List): Boolean

Returns the list of supports through which a bundle segment or multi-branchable document is routed.

Example

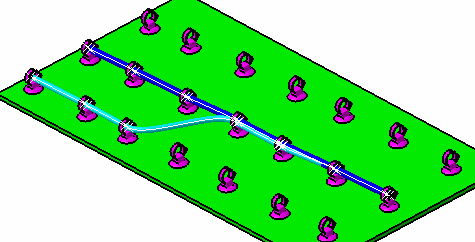

The example shows a multi-branchable document containing two bundle segments, each routed through seven supports.

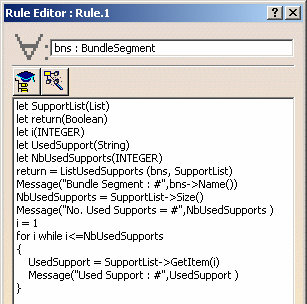

A rule (in KWE advanced language) to determine the number and names of the supports through which each bundle segment is routed is written as follows:

Solving this rule returns:

  • The name of the bundle segment analyzed.
  • The number of supports through which the bundle segment is routed.
  • Followed by the names of these supports.

ListUsedSupportWithAbscissa

Syntax

ListUsedSupportWithAbscissa (iBundleSegment:Bundle Segment, oSupportList: List, oEntryPointAbscissa: List, oExitPointAbscissa: List): Boolean

Returns the list of supports in the order in which they are located along the center curve of the bundle segment from the first extremity of the said segment. Two other lists are output: entry point coordinates and exit point coordinates of each support.

Syntax

ListUsedSupportWithAbscissa (iBranchableBundle:Branchable Bundle Segment, oSupportList: List, oEntryPointAbscissa: List, oExitPointAbscissa: List): Boolean

Returns the list of supports in the order in which they are located along the center curve of the branch from the first extremity of the said segment. Two other lists are output: entry point coordinates and exit point coordinates of each support.

Example

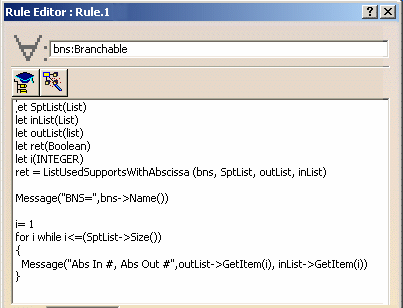

An expert rule (created using Knowledge Expert) to determine the list of all the supports located along all segments in the document that also outputs support entry and exit point coordinates:

VisualMode

Syntax

VisualMode (BundleSegment: Feature, Visualization Mode (LIGHT/FULL): String): Boolean

Description

This function is useful to minimize the size of the harness in LIGHT mode. It simplifies the visualization, the curve and the diameter only are represented, the rib being deleted.

This function is only available for bundle segments belonging to multi-branchable documents.

Example

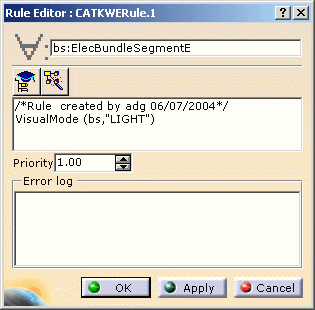

Create a rule in Knowledge Expert:

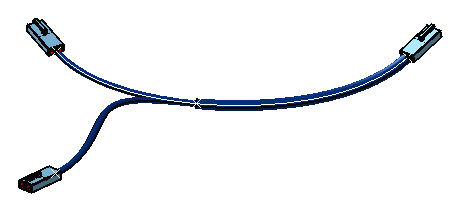

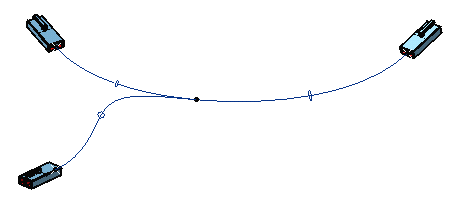

Running this rule displays the harness in LIGHT mode:

The rule is reversible: you can load a harness in LIGHT mode and reload the geometry by applying the rule with the FULL parameter:

The harness is displayed in FULL mode: the rib is recreated:

Working in LIGHT mode allows you to modify the route and route wires but the split, transfer and add branch point commands are not supported.
To know more about these commands, refer to Electrical Harness Installation - Working with Branches, Splitting Branches and Transferring Branches.

ListIntSpliceWithAbscissa

Syntax

ListIntSpliceWithAbscissa (iBundleSegment:Bundle Segment, oIntSpliceList: List, oEntryPointAbscissa: List, oExitPointAbscissa: List): Boolean

Returns the list of internal splices in the order in which they are located along the center curve of the bundle segment from the first extremity of the said segment. Two other lists are output: entry point coordinates and exit point coordinates of each internal splice.

Syntax

ListIntSpliceWithAbscissa (iBranchableBundle:Branchable Bundle Segment, oIntSpliceList: List, oEntryPointAbscissa: List, oExitPointAbscissa: List): Boolean

Returns the list of internal splices in the order in which they are located along the center curve of the branch from the first extremity of the said segment. Two other lists are output: entry point coordinates and exit point coordinates of each internal splice.

InstantiateInternalProtection

Syntax

InstantiateInternalProtection (iBundleSegmentExtremity:BundleSegmentExtremity, ProtectionType:String, Length:Length, out oProtection:InternalProtection): Boolean

Instantiates a light protective covering from a segment extremity with a given length.

The Protection type can be InternalTape (light tape protective covering), InternalAdaptive (light adaptive protective covering), InternalCorrugate (light corrugated tube) or InternalFixed (light fixed diameter protective covering).

The protective covering is instantiated in the document containing the segment extremity.
