View Dress-up parameters

View dress-up parameters are located in the Drafting > ViewDressup node of the generative view style XML file (available via Tools> Standard> generativeparameters category > *.XML file).

These parameters define the style of the various parameters which deal with the dress-up of the view.

This section deals with the following subjects:

Dress-up parameters
How are dress-up parameters computed?

All generative view styles apply to views generated in exact mode. On top of that, some generative view style parameters also apply when creating other view types (CGR, Approximate and Raster), as specified for each concerned view dress-up element.

Dress-up Parameters

There are various kinds of dress-up parameters:

Operators
3DInheritance
GeneratedGeometry

Operators

Parameter	Parameter Name	Value	Description
Section
	Visible	yes/no	Specifies whether or not the section profile should be visible.
	Color	color	Determines the color of the section profile.
	Linetype	integer	Determines the linetype used for the section profile.
	Thickness	integer	Determines the line thickness used for the section profile.
The section profile parameter is displayed in red.
Section> SkinSection	Color	color	Determines the color of the skin section profile.
	Linetype	integer	Determines the linetype used for the skin section profile.
	Thickness	integer	Determines the line thickness used for the skin section profile.

Section> SolidSection	Color	color	Determines the color of the solid section profile.
	Linetype	integer	Determines the linetype used for the solid section profile.
	Thickness	integer	Determines the line thickness used for the solid section profile.

Detail Remark: all parameters also apply to CGR, Approximate and Raster view types.
	Visible	yes/no	Specifies whether or not the detail profile should be visible.
	Color	color	Determines the color of the detail profile.
	Linetype	integer	Determines the linetype used for the detail profile.
	Thickness	integer	Determines the line thickness used for the detail profile.

Break Remark: all parameters also apply to CGR, Approximate and Raster view types.
	Visible	yes/no	Specifies whether or not the break profile should be visible.
	Color	color	Determines the color of the break profile.
	Linetype	integer	Determines the linetype used for the break profile.
	Thickness	integer	Determines the line thickness used for the break profile.

Breakout
	Visible	yes/no	Specifies whether or not the breakout/3D clipping profile should be visible.
	Color	color	Determines the color of the breakout/3D clipping profile.
	Linetype	integer	Determines the linetype used for the breakout/3D clipping profile.
	Thickness	integer	Determines the line thickness used for the breakout/3D clipping profile.

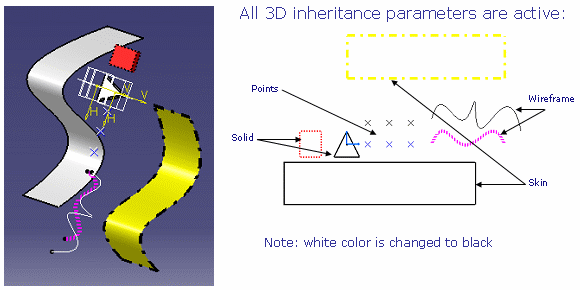

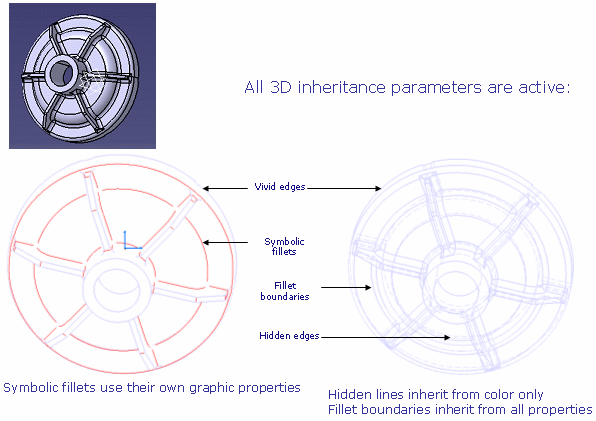

3DInheritance

Parameter	Parameter Name	Value	Description

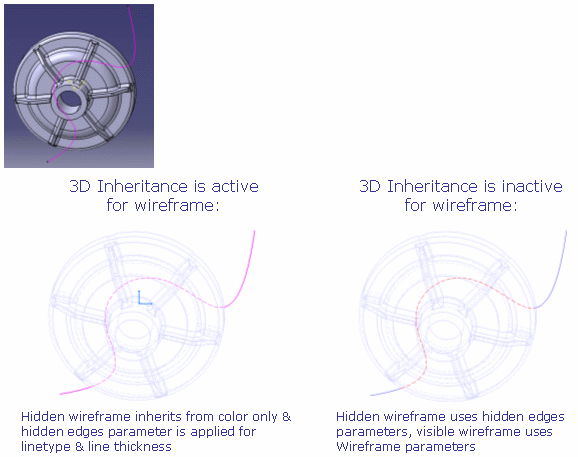

Wireframe
	Color	yes/no	Specifies whether wireframe color should be inherited from 3D.
	Linetype	yes/no	Specifies whether wireframe linetype should be inherited from 3D.
	Thickness	yes/no	Specifies whether wireframe thickness should be inherited from 3D.

Solid Remark: all parameters also apply to Raster view types.	Color	yes/no	Specifies whether solid color should be inherited from 3D.
	Linetype	yes/no	Specifies whether solid linetype should be inherited from 3D.
	Thickness	yes/no	Specifies whether solid thickness should be inherited from 3D.

3D Points	Color	yes/no	Specifies whether generated points color should be inherited from 3D.
	Symbol	yes/no	Specifies whether generated points symbol should be inherited from 3D.
	Name	yes/no	Specifies whether generated points name should be inherited from 3D.

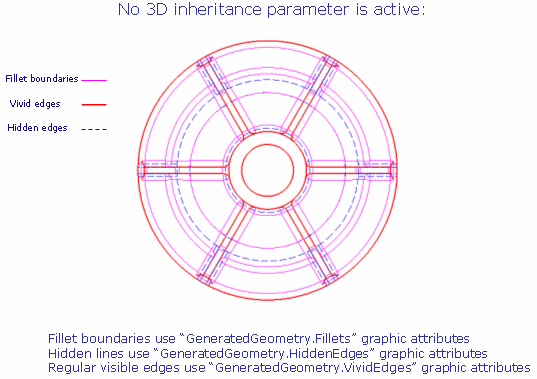

GeneratedGeometry

Parameter	Parameter Name	Value	Description
VividEdges Remark: all parameters apply to CGR and Approximate view types.
	Color	color	Determines the color of vivid edges.
	Linetype	integer	Determines the linetype used for vivid edges.
	Thickness	integer	Determines the line thickness used for vivid edges.

HiddenEdges Remark: all parameters apply to CGR and Approximate view types.	Color	color	Determines the color of hidden edges.
	Linetype	integer	Determines the linetype used for hidden edges.
	Thickness	integer	Determines the line thickness used for hidden edges.

Fillets	Color	color	Determines the color of fillets.
	Linetype	integer	Determines the linetype used for fillets.
	Thickness	integer	Determines the line thickness used for fillets.

Wireframe
	Color	color	Determines the color of wireframe.
	Linetype	integer	Determines the linetype used for wireframe.
	Thickness	integer	Determines the line thickness used for wireframe.

3DPoints
3DPoints	Symbols	integer	Determines the symbol used for 3D points. Use O to inherit from the 3D symbol, use 1 to 8 to choose a custom symbol.
