Resetting and Checking Component Positioning

This task shows you how to reset and check component position.
Insert the following sample model files in the samples folder:
  • ATOMIZER
  • BODY1
  • BODY2
  • LOCK
  • REGULATOR
  • TRIGGER
  • VALVE
  • REGULATION_COMMAND

This creates Scene 1

  1. Double-click the scene representation to enter the scene.

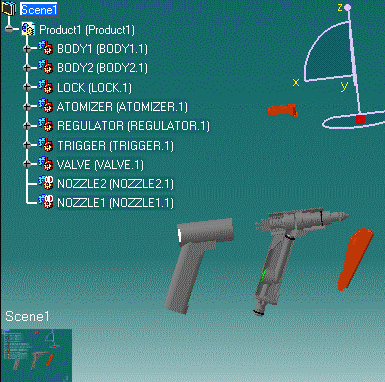

    In this scene you moved various components using the 3D compass capability. Please refer to Moving Objects Using the 3D compass in the Infrastructure User's Guide.


  2. Select Tools > Check Positioning... from the menu bar to find the items that you moved. The moved items are highlighted in the specification tree.

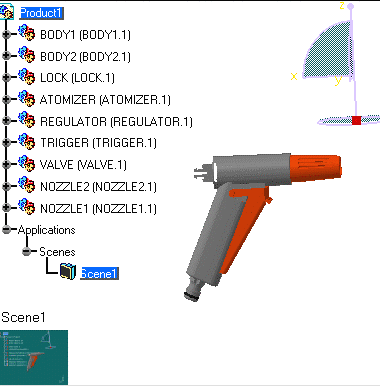

  3. Click Reset Selected Products I_ReplaceComponentP2.gif (289 bytes) and exit the scene. The items are repositioned in the scene as they were in the initial product.
