Creating the Enterprise Archive File

• automatic deployment
• manual deployment.

This scenario does NOT cover all possible deployment scenarios on a WAS ND (Network Deployment) cluster of machines. However, the generated JACL (defined later) can be used if all machines in the cluster have same image (OS, file systems, etc.). WAS ND lets you clone the installation of a single WAS node to all the clusters.

A Few Definitions

WAS is an acronym for WebSphere Application Server, the IBM server infrastructure used to run WebTop applications.

EAR is the short name for Enterprise Archive file. An EAR file contains a subset of the information required to deploy a WebTop application in WebSphere Application server: the application root URI, security on the URL handled by the application, persistency details, path to the ENOVIA installation directory.

WebTop: WebTop applications are applications which are targeted to be used from a web browser, like Microsoft Internet Explorer or Mozilla. WebTop applications can be deployed on WAS or as Microsoft ASP.NET. The WebTop applications involved here is the LCA Navigator.

Input Variable	Signification	Source
<was_home>	location of the WebSphere Application Server	WebSphere administrator
<install_path>	location of the code installation	Unloading the Code
<os>	operating system of the machine on which you've installed the code	Windows: intel_a AIX: aix_a SOLARIS: solaris_a HP/UX: hpux_b
<environment_name>	the chosen environment filename	Unloading the Code
<environment_dir>	the path to the directory of the environment filename	Unloading the Code
<db2_jdbc_driver_path>	path of the directory containing DB2 Universal JDBC driver files	Creating a DB2 Database for Settings Persistency
<oracle_jdbc_driver_path>	path of the directory containing ORACLE  JDBC driver files	Creating an ORACLE Database for Settings Persistency
<database_name>	name of the database for settings persistency	If DB2: Creating a DB2 Database for Settings Persistency If ORACLE: Creating an ORACLE Database for Settings Persistency
<database_hostname>	name of the machine hosting the database	If DB2: Creating a DB2 Database for Settings Persistency If ORACLE: Creating an ORACLE Database for Settings Persistency
<database_port>	port number used by the database instance	If DB2: Creating a DB2 Database for Settings Persistency If ORACLE: Creating an ORACLE Database for Settings Persistency
<server_name>	machine name of the WebSphere Application Server	WebSphere administrator
<rootURI>	name that appears in the URL your users will use to connect to the web application	WebSphere administrator
DB2
<db2admin_username>	user name of the DB2 administrator account	DB2 administrator
<db2admin_password>	password of the DB2 administrator account	DB2 administrator
ORACLE
<settings_username>	name of database user corresponding to settings persistency	Creating an ORACLE Database for Settings Persistency
<settings_password>	password of database user corresponding to settings persistency	Creating an ORACLE Database for Settings Persistency

Output Variable	Signification	Where Used
<ear_file>	absolute path to the Enterprise Archive file	Installing the Enterprise Archive file in a WebSphere Application Server

1. Launch the WASSetupUI command as follows:

On Windows

In a command prompt window, change directory to

<install_path>\intel_a\code\bin

in the ENOVIA installation and launch the WASSetupUI command by typing:

WASSetupUI.exe

Warning: if the environment directory contains more that one environment file, you must launch the WASSetupUI command this way:

cd <install_path>/<os>/code/bin
catstart.exe -env <environment_name> -dir <environment_dir> -run WASSetupUI

where <environment_name> is the name of the environment file and <environment_dir> is the path to the environment file.

On UNIX

Launch the WASSetupUI command:

cd <install_path>/<os>/code/command
./catstart -env <environment_name> -dir <environment_dir> -run WASSetupUI

where <environment_name> is the name of the environment file and <environment_dir> is the path to the environment file.

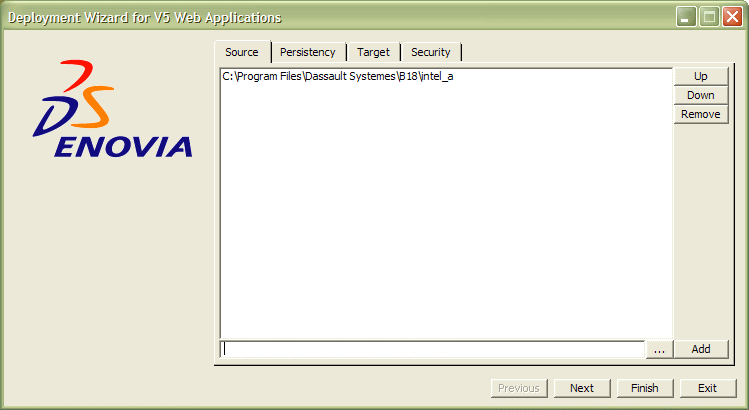

The WASSetupUI interface will appear. You will now be on the Source tab:

Normally, the WASSetupUI command will automatically find and display the location of the runtime view of the installed code.

2. If not, enter the location of the runtime view of your installed code.

   <install_path>/<os> (UNIX)
<install_path>\<os> (Windows)

   In our example, this is:

   WindowsInstallPath\intel_a

3. Click the Next button.

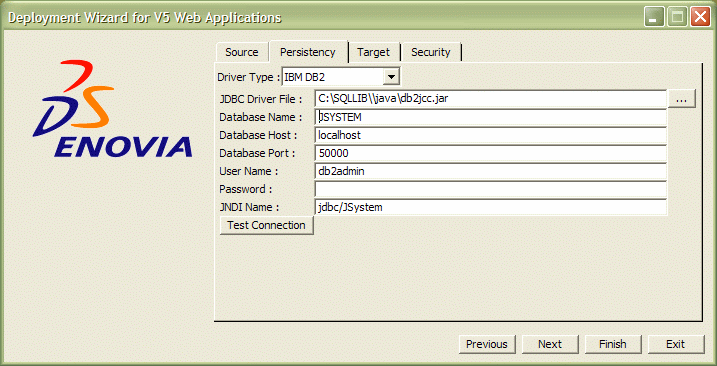

   You will now be on the Persistency tab.
   The default is for IBM DB2:



5. Click the Driver Type selection button and choose the Driver Type of your persistency database from the proposed list. You must choose either IBM DB2 or ORACLE.

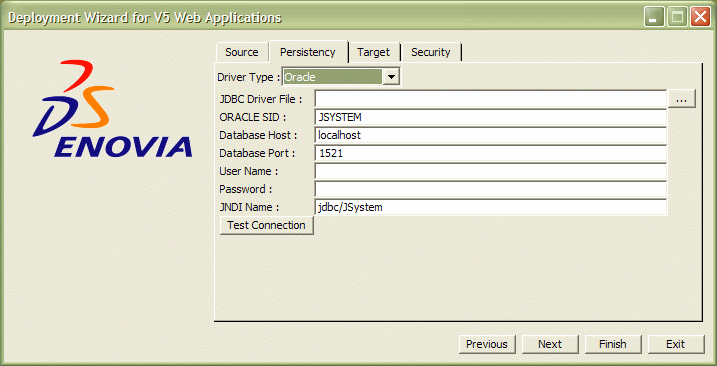

   The Oracle tab looks like this:





6. In the JDBC Driver File text-entry field, depending on the database you previously created for settings persistency:

   DB2:  enter the path of the db2jcc.jar file which is part of the DB2 Universal JDBC Driver:

   <db2_jdbc_driver_path>\db2jcc.jar (Windows)
<db2_jdbc_driver_path>/db2jcc.jar (UNIX)

   ORACLE: enter the path of the ORACLE JDBC driver:

   <oracle_jdbc_driver_path>/ojdbc14.jar  (Windows)
<oracle_jdbc_driver_path>\ojdbc14.jar  (UNIX)


7. In the Database Name (DB2) or ORACLE SID (Oracle) text-entry field, enter the database name chosen for settings persistency, <database_name>

8. In the Database Host text-entry field, enter the name of the machine hosting the database, <database_hostname>.

   The default is localhost: you can use the default if the database is on the same machine.

9. In the Database Port text-entry field, enter the port number used by the database instance, <database_port>.

10. In the User Name text-entry field, depending on the database chosen for settings persistency:

    DB2: Enter the name of the database administrator, <db2admin_username>.

    ORACLE: Enter the name of the ORACLE user created for settings persistency, <settings_username>.

11. In the Password text-entry field, depending on the database chosen for settings persistency:

    DB2: Enter the password of the database administrator, <db2admin_password>

    ORACLE: Enter the password of the ORACLE user created for settings persistency, <settings_password>.

12. In the JNDI Name field, set the JNDI name for the JSystem data source, for example:

    jdbc/JSystem

13. Click the Test Connection button to test the connection with the database.

    A test connection to the persistency database will be performed. An additional Output tab is added displaying test connection execution output. If successful, a popup appears displaying the message:

    Successful Database Connection

    If so, click OK to continue.

13. Click the Next button.

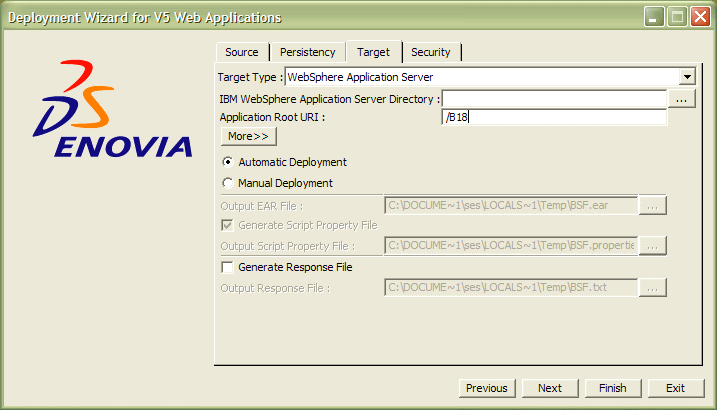

    You will now be on the Target tab:




14. Select a Target Type.
    The target type is the web application server in which you are deploying the web application. There is only one type: WebSphere Application Server.

15. For the WebSphere Application Server target, specify the IBM WebSphere Application Server Directory:

    <was_home>/AppServer (UNIX)
<was_home>\AppServer (Windows)

    Normally, the WASSetupUI command will find it automatically.
    On UNIX: The IBM WebSphere Application Server Directory should be set to the location of your WebSphere installation.

16. In the Application Root URI text-entry field, enter application root, <rootURI>.

    You can enter only alphanumeric characters and supported special characters, but no blanks.

    The rootURI of a WebTop application is part of the URL typed in the address bar of a web browser in order to access that application. Specifically, the general URL syntax to access a WebTop application is:

    http://<server name>:<port>/<rootURI>/

    where:

    <server name> is the name of the machine running WAS
    <port> is the port number on which WAS is listening to run web applications
    <rootURI> is the application Root URI. A valid root URI is made of an alphanumerical string

    For example:

    http://loug3dsy.dsy.ds:9043/ENOVIA_EnvNameSuffix

    Note: It is very important for compatibility issues with future releases to choose a name that is based on the release number and not based only on a product name.

17. Choose either Automatic Deployment or Manual Deployment.
    The default is set to Automatic Deployment.

Automatic Deployment

This is by far the simplest solution for simple, rapid deployment of your web application in a single application server. This performs several operations that you had to perform manually in previous releases using the WAS administration console. Deployment is simplified by scripting, reducing the many interactions in WAS Admin Console to running a command.

Warning: If automatic deployment mode is chosen, the WASSetupUI command runs the WebSphere command wsadmin which in turn tries to write its logs in subdirectories in:

<was_home>/logs

Consequently, the following steps must be performed using a user who has the right to read and write files in the subdirectories of this WAS directory. For example, on UNIX, use the same user as the one used to install WebSphere Application Server.

To deploy automatically, simply click the Finish button. job execution is traced in the Output tab. When you see the popup:

Successful Execution. Quit?

it means that the EAR file has been successfully generated. Click Yes to quit.

Warning: deploying an ENOVIA web application removes any previously deployed ENOVIA web application.

WAS Admin Console is the name for the Administration application of WAS. The WAS Admin Console is run in a web browser. It allows you to deploy, monitor, and perform error tracking and tuning tasks for the web applications run by WAS.

The operations performed by automatic deployment are:

• creation of data sources
• set up of WebSphere server variables
• installation of the EAR in WAS.

Note: performing automatic deployment removes all ENOVIA applications and all previously created data sources, even those created on other WAS servers on the same machine resulting from the same WAS installation.

Once the web application has been deployed, you must restart WAS and run a first test of the web applications:

• SSO
• LCA Navigator.

Limitation: operations related to HTTP server configuration must also be done manually.

Manual Deployment

If you check the Manual Deployment option, the dialog box looks like this:

If you click the Finish button now, deployment will have to be performed exactly as in the previous release, involving all the manual steps inside the WebSphere environment.

The Output EAR File option specifies where the resulting EAR file is located. You will then have to install it in WebSphere exactly as before. In the Output EAR File text-entry field, enter the desired output location of the generated EAR file, <ear_file>. (Note that you must add the ".ear" extension, it will not be added automatically.). You can also click the "..." button to browse and specify the EAR file name and location.

However, if the Generate JACL Property File option is checked, a JACL Deployment script will be generated in the location specified by the Output  JACL Property File field.

JACL is the short name for JAva Command Language. JACL is a script language, supported by WAS for scripted installation and administration tasks. With an appropriate JACL script, deployment tasks for WebTop applications can amount to running the wsadmin command, instead of manually performing several interactive steps using the WAS Admin Console. For experienced WebSphere administrators, this file can be customized to perform, for example, deployment on multiple machines.

In the case of deployment to WAS, the JACL script will configure the WAS server called server1.

If a JACL script was generated, you must use the wsadmin command, located in:

<WebSphere application server install dir>\bin (Windows)
<WebSphere application server install dir>/bin (UNIX)

in order to run the JACL script.

If this option is not checked, the JACL file generation option will be inaccessible and grayed out.

Instructions for Manual Deployment

If the manual deployment option is chosen instead of automatic deployment, there are two cases:

• either all WebSphere configuration steps for deployment will be performed using WebSphere Admin Console or wsadmin scripting without recycling the JACL command that the WASSetupUI command can generate even without automatic deployment
• or you selected Generate JACL Property File with a target path for this property file.

Fully Manual Deployment

In this case, after running the WASSetupUI command, you must perform the following configuration on WAS (either through the WebSphere Admin Console or using wsadmin commands):

1. Declare a DB2 or ORACLE (database brand must be consistent with the one chosen in WASSetupUI) Data Source, with the following constraints:

• The JDNI name of the data source *must* precisely be this one (mind the capitalization):

  jdbc/JSystem
• If DB2 is used, the Data source must rely on the DB2 Universal Database Driver (db2jcc.jar) in Type 4 mode
• If ORACLE is used, the Database must rely on the ORACLE JDBC Driver part of standard JDBC drivers choices in WebSphere Admin Console (which depend on the precise WAS version).

2. You must choose a server (in WebSphere terminology: a server means a JVM -Java Virtual Machine) and setup the following for this server.

The following environment variables are set for the chosen server:

Windows

Variable name	Variable value	Comment
PATH	<install path>/intel_a/code/bin	Required for native code used by ENOVIA WebTop applications

AIX

Variable name	Variable value	Comment
DISPLAY	A valid X11 display	Required because ENOVIA WebTop application draw images and font server-side
LIBPATH	<install path>/aix_a/code/bin	Required for native code used by ENOVIA WebTop applications

HP-UX

Variable name	Variable value	Comment
DISPLAY	A valid X11 display	Required because ENOVIA WebTop application draw images and font server-side
SHLIB_PATH	<install path>/hpux_b/code/bin	Required for native code used by ENOVIA WebTop applications
LD_PRELOAD	/usr/lib/libF90.1	Required for native code used by ENOVIA WebTop applications

Solaris

You can now run Version 5 Webtop applications on SUN Microsystems machines with a SPARC processor and running Solaris 8 upwards.

Variable name	Variable value	Comment
LD_LIBRARY_PATH	<install path>/solaris_a/code/bin	Required for native code used by ENOVIA WebTop applications

3. The EAR file generated by WASSetupUI must be installed on the chosen server, without modification on the Role mapping.

4. WAS must be restarted after all these changes to run the web applications.

Manual Deployment based on the JACL property file generated by WASSetupUI

The last deployment option, which is to select Manual deployment and Generate JACL property file is meant for advanced users who master the JACL scripting language in WAS. Using the JACL scripts which are part of ENOVIA runtime and the generate JACL property file, advanced users can customize the deployment to their specific needs.

For example, if the machine on which the WASSetupUI command is run is not the same as the targeted machine for WAS, advanced users can copy the JACL and property files and run the deployment on the WAS machine using the wsadmin command. The best way to take advantage of this is to run the WASSetupUI command in automatic mode at least once, and see how the wsadmin commands are launched in the log text area (this can be copy-pasted to a text editor for later inspection). On the remote machine, some paths will probably need to be modified in order to successfully run wsadmin with real file locations, as well as some properties in the JACL file (call, node and server name must match the targeted WAS real names).

Another usage pattern is to copy the JACL files and edit them in order to implement some specific deployment topology not externalized in the JACL property file.

Using the More Button

Click the More button to display the following information:

In automatic mode, the software assumes that the name of the WAS profile is the default profile (the profile field is grayed out because WAS was not installed on the machine on which the screen shot was made), the WAS cell and WAS node are the same as the name of the machine hosting the WAS, and that the server name is server1. You set the profile, cell, node and server names when installing WAS. If the default names are not correct, reset the correct names using the combo box showing relevant choices (in automatic mode), before clicking the Finish button.

On UNIX, hitting the "More" button lets you choose the X11 display setting (machine:1.0 for example) which is interesting when deploying on a machine without X11 (for example, big servers) or to use the Virtual Frame Buffer:

Note that the WAS profile is the default profile: it is displayed because WAS was installed on the UNIX machine on which the screen shot was made.

Generate response file

The Generate response file option generates the response file corresponding to all options selected in an interactive WASSetupUI session until the Finish button is clicked. The response file can be used by people in charge of web application deployment as a template for silent mode (i.e., non interactive) deployment.

Executing the Command

Once you have made your choice, click the Finish button now. The Output tab is then displayed containing the execution results.

If you selected the Automatic Deployment option, the application will be deployed automatically in the WebSphere Application Server. To start the application, refer to Launching the Web Application.

WASSetupUI Command Options

There are several options for the WASSetupUI command

• -i:  indicates path of a file containing strings to initialize fields for the user interface
• -o: log file of the utility (all data written to the Output tab of WASSetupUI are also written in the log file as well as the text displayed for information/error messages
• -generateInput: indicates the file where all user interface fields are dumped. This file can be used as input (-i option) for later WASSetupUI execution
• -silent: indicates the "silent" mode of the utility, which means that the user interface is not displayed and the Finish button is automatically selected. This option should of course be used with the -o option to obtain a trace of utility execution.

Using the Security Tab

The Security tab is designed to secure your WebSphere Application Server by allowing you to enter the information you usually enter using the WebSphere Administrative console. This means that your WebSphere Application Server can be secured and your Enterprise Archive file can be deployed at the same time.

For full details about how to do so, refer to Securing the WebSphere Application Server.
