Export Default Directory
This option lets you define the default directory in which the criteria configuration have been saved.
By default, the Export Default Directory field is empty.
While a default directory is not defined, you cannot use the Export Criteria option in the Quality Analysis functionality in the Advanced Meshing Tools workbench (for more details, refer to Advanced Meshing Tools User's Guide - User Tasks - Quality Analysis - Analyzing Element Quality).
Default Standard File
This option lets you define the list of quality criteria that will be used by default.
By default, the Default Standard File field is empty and so all
the Quality Criteria are taken into account.

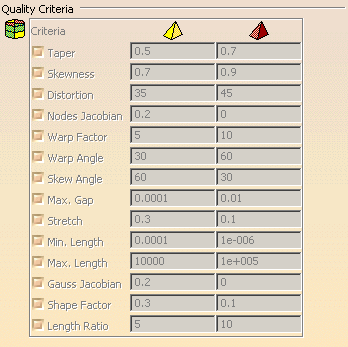

Quality Criteria
This frame lets you visualize the quality criteria that are taken into account and their limit values between:
-
good and poor elements -
poor and bad elements
By default, all the Quality Criteria are taken into account.
The limit values change as you define the Default Standard File option.
