DMU Marker


	The DMU Marker settings page concerns the following settings categories: Marker Default Properties 2D Annotations Text Properties 3D Annotations Text Properties
	Marker Default Properties
	There are three options available for customizing the display of 2D and 3D markers. Defining the Marker default properties in the `Tools->Options->DMU Navigator` sets the selected properties as default properties and changes how new annotations will look when you create them.
	Color
	Click the `Color` selection button and choose the desired color from the proposed list. By default, this option is valuated to Red.
	Weight
	Click the `Weight` selection button and choose the desired line weight from the proposed list.
	Dashed
	Click the `Dashed` selection button and choose the desired dash pattern from the proposed list.

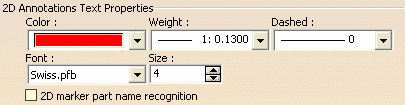

	2D Annotations Text Properties
	There are five options available for customizing the display of 2D Annotation text. Defining the Marker default properties in the `Tools->Options->DMU Navigator` sets the selected properties as default properties and changes how new annotations will look when you create them. There is an additional option concerning a special part name recognition mode available for 2D markers.
	Color
	Click the `Color` selection button and choose the desired color from the proposed list. By default, this option is valuated to Red.
	Weight
	Click the `Weight` selection button and choose the desired line weight from the proposed list.
	Dashed
	Click the `Dashed` selection button and choose the desired dash pattern from the proposed list.
	Font
	Click the `Font` selection button and choose the font from the proposed list.
	Size
	In the `Size` text-entry field, enter the desired size value or click the selection buttons to increase or decrease the value.
	2D Marker Part Name Recognition
	Click the `2D marker part name recognition` checkbox in order to activate the option to automatically use a Part's Name as the default for the creation of text annotations. By default, this option is unchecked.

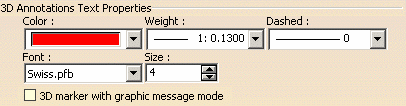

	3D Annotations Text Properties
	There are five options available for customizing the display of 3D Annotation text. Defining the Marker default properties in the `Tools->Options->DMU Navigator` sets the selected properties as default properties and changes how new annotations will look when you create them. There is an additional option concerning a special graphic message mode available for 3D markers.
	Color
	Click the `Color` selection button and choose the desired color from the proposed list. By default, this option is valuated to Red.
	Weight
	Click the `Weight` selection button and choose the desired line weight from the proposed list.
	Dashed
	Click the `Dashed` selection button and choose the desired dash pattern from the proposed list.
	Font
	Click the `Font` selection button and choose the font from the proposed list.
	Size
	In the `Size` text-entry field, enter the desired size value or click the selection buttons to increase or decrease the value.
	3D Marker with Graphic Message Mode
	Click the `3D marker with graphic message mode` checkbox in order to activate the mechanism that enables you to transform temporary markers into persistent 3D annotations. By default, this option is unchecked.
